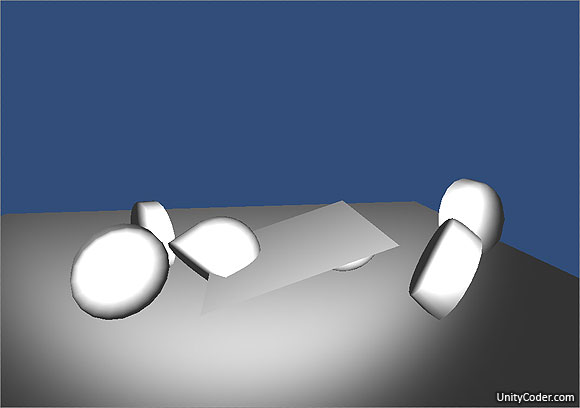

Fake Mesh Slicer v3.0

16 Comments + Add Comment

•
  gamer001 25/10/2011 at 14:46

  nice. thank you!

  Reply
•
  mgear 25/10/2011 at 18:26

  btw. this package has a small bug,
  some vertices are pushed in wrong direction/too far,
  when the cutting plane rotated (not straight).

  cant remember it right now how to fix it,
  but it might be something to do with the cutting planes local rotation or distance..(?)

  Reply
•
  mgear 22/03/2014 at 21:02

  mesh slicer (asset store)
  https://www.assetstore.unity3d.com/#!/content/13373?aid=1101lGti

  Reply
•
  Irich 07/05/2014 at 20:08

  Nice script, thank you for sharing this.
  Is it possible to make it cutting just small peace of mesh. I have tested it on one mesh represent terrain and it is cutting all peaks, i will to cut (flatten) just a small peace of that terrain mesh?

  Chears

  Reply
•
  mgear 13/09/2016 at 13:41

  Unity simple Mesh cutting Code


  Reply
•
  Ninekorn 14/02/2017 at 10:54

  Hello MGear. I got interested in this project to make my own cutting script. I need it for my game project. unfortunately for now it is not really working as I expect it to. all vertices are supposed to follow at the EXACT point of the blade cut but something is wrong… Here’s your code + my own mixed up together.

  using System.Collections;
  using System.Collections.Generic;
  using UnityEngine;

  public class example : MonoBehaviour
  {
  private static Plane blade;

  int[] triangles;
  Vector3[] vertices;
  Mesh mesh;

  List vertsTrigConnections = new List();
  List vertTrigDirToNotCalculate = new List();
  List totalDirections = new List();

  List rightSideVertTemp = new List();
  List leftSideVertTemp = new List();

  List newVertices = new List();

  Vector3 dir0;
  Vector3 dir1;
  Vector3 dir2;

  void Update()
  {
  float mouseVert = Input.GetAxisRaw(“Mouse Y”);
  float mouseHorz = Input.GetAxisRaw(“Mouse X”);

  transform.Rotate(new Vector3(-mouseVert, mouseHorz, 0));

  Debug.DrawRay(new Vector3(transform.position.x, transform.position.y, transform.position.z), transform.forward, Color.red, 0.1f);

  if (Input.GetMouseButtonDown(0))
  {
  RaycastHit hit;

  if (Physics.Raycast(transform.position, transform.forward, out hit, 20f))
  {
  mesh = hit.transform.GetComponent().mesh;
  GameObject hitObject = hit.transform.gameObject;
  blade = new Plane(hit.transform.InverseTransformDirection(transform.right), hit.transform.InverseTransformPoint(transform.position));

  for (int i = 0; i < hit.transform.GetComponent().mesh.vertices.Length; i++)
  {
  if (!blade.GetSide(hit.transform.GetComponent().mesh.vertices[i]))
  {
  leftSideVertTemp.Add(hit.transform.GetComponent().mesh.vertices[i]);
  }
  if (blade.GetSide(hit.transform.GetComponent().mesh.vertices[i]))
  {
  rightSideVertTemp.Add(hit.transform.GetComponent().mesh.vertices[i]);
  }
  }

  vertices = hitObject.transform.GetComponent().mesh.vertices;
  triangles = hitObject.transform.GetComponent().mesh.triangles;

  for (int i = 0; i < triangles.Length; i += 3)
  {

  Vector3 worldPt0 = vertices[triangles[i + 0]];
  Vector3 worldPt1 = vertices[triangles[i + 1]];
  Vector3 worldPt2 = vertices[triangles[i + 2]];

  vertsTrigConnections.Add(worldPt0);
  vertsTrigConnections.Add(worldPt1);
  vertsTrigConnections.Add(worldPt2);

  dir0 = worldPt1 – worldPt0;
  dir1 = worldPt2 – worldPt1;
  dir2 = worldPt0 – worldPt2;

  if (!totalDirections.Contains(dir0))
  {
  totalDirections.Add(dir0);
  }
  if (!totalDirections.Contains(dir1))
  {
  totalDirections.Add(dir1);
  }
  if (!totalDirections.Contains(dir2))
  {
  totalDirections.Add(dir2);
  }

  for (int h = 0; h < vertsTrigConnections.Count – 1; h++)
  {
  for (int f = h + 1; f < vertsTrigConnections.Count; f++)
  {
  if (vertsTrigConnections[h] == vertsTrigConnections[f])
  {
  vertTrigDirToNotCalculate.Add(vertsTrigConnections[h]);
  }
  }
  }

  Debug.Log(vertsTrigConnections.Count);

  for (int h = 0; h < vertTrigDirToNotCalculate.Count – 1; h++)
  {
  for (int f = h + 1; f < vertTrigDirToNotCalculate.Count; f++)
  {
  if (dir0 == vertTrigDirToNotCalculate[h] – vertTrigDirToNotCalculate[f] ||
  dir0 == vertTrigDirToNotCalculate[f] – vertTrigDirToNotCalculate[h])
  {
  //Debug.Log("coliss1");
  //totalDirections1.Remove(dir0);
  totalDirections.Remove(dir0);
  }
  if (dir1 == vertTrigDirToNotCalculate[h] – vertTrigDirToNotCalculate[f] ||
  dir1 == vertTrigDirToNotCalculate[f] – vertTrigDirToNotCalculate[h])
  {
  //Debug.Log("coliss2");
  //totalDirections2.Remove(dir1);
  totalDirections.Remove(dir1);
  }

  if (dir2 == vertTrigDirToNotCalculate[h] – vertTrigDirToNotCalculate[f] ||
  dir2 == vertTrigDirToNotCalculate[f] – vertTrigDirToNotCalculate[h])
  {
  //Debug.Log("coliss3");
  //totalDirections3.Remove(dir2);
  totalDirections.Remove(dir2);
  }
  }
  }

  var enumerator999 = rightSideVertTemp.GetEnumerator();
  while (enumerator999.MoveNext())
  {
  var currentVert = enumerator999.Current;
  var enumerator888 = leftSideVertTemp.GetEnumerator();
  while (enumerator888.MoveNext())
  {
  var currentVert1 = enumerator888.Current;
  Vector3 dir = (currentVert1 – currentVert);
  Vector3 diri = (currentVert – currentVert1);

  for (var g = 0; g < vertices.Length; g++)
  {

  for (int j = 0; j < totalDirections.Count; j++)
  {
  if (worldPt0 == currentVert && totalDirections[j] == dir)
  {
  Ray vecRay0 = new Ray(worldPt0, totalDirections[j]);
  float dist0;
  if (blade.Raycast(vecRay0, out dist0))
  {
  if (!newVertices.Contains(vecRay0.GetPoint(dist0)))
  {
  newVertices.Add(vecRay0.GetPoint(dist0) + hit.transform.position);
  }
  if (worldPt0 == vertices[g])
  {
  vertices[g] = vecRay0.GetPoint(dist0);
  }
  }
  }
  }
  for (int j = 0; j < totalDirections.Count; j++)
  {

  if (worldPt1 == currentVert && totalDirections[j] == dir)
  {
  Ray vecRay1 = new Ray(worldPt1, totalDirections[j]);
  float dist1;

  if (blade.Raycast(vecRay1, out dist1))
  {
  if (!newVertices.Contains(vecRay1.GetPoint(dist1)))
  {
  newVertices.Add(vecRay1.GetPoint(dist1) + hit.transform.position);
  }
  if (worldPt1 == vertices[g])
  {
  vertices[g] = vecRay1.GetPoint(dist1);
  }

  }
  }
  }
  for (int j = 0; j < totalDirections.Count; j++)
  {
  if (worldPt2 == currentVert && totalDirections[j] == dir)
  {
  Ray vecRay2 = new Ray(worldPt2, totalDirections[j]);
  float dist2;

  if (blade.Raycast(vecRay2, out dist2))
  {
  if (!newVertices.Contains(vecRay2.GetPoint(dist2)))
  {
  newVertices.Add(vecRay2.GetPoint(dist2) + hit.transform.position);
  }
  if (worldPt2 == vertices[g])
  {
  vertices[g] = vecRay2.GetPoint(dist2);
  }
  }
  }
  }
  }
  }
  }
  }
  }
  mesh.vertices = vertices;
  mesh.RecalculateBounds();
  }
  rightSideVertTemp.Clear();
  leftSideVertTemp.Clear();
  newVertices.Clear();
  vertsTrigConnections.Clear();
  vertTrigDirToNotCalculate.Clear();
  totalDirections.Clear();
  }
  }

  Reply
•
  Ninekorn 14/02/2017 at 11:49

  i seem to have fixed my issue… i just took off the if’s worldPt0 == currentVert && worldPt1 == currentVert && worldPt2 == currentVert… now its lag the problem. What the code does is the same as yours except it moves the vertices to the pinpoint correct position… not in all angles though. Thank you by the way for sharing your project Mgear.
  Nine

  Reply
•
  mgear 14/05/2018 at 16:29

  An open source mesh slicer framework for Unity3D Game Engine. Written in C#.
  https://github.com/DavidArayan/EzySlice

  Reply
•
  mgear 02/10/2018 at 17:08

  “Slice meshes in runtime in a dynamic way. Very similar to what is implemented in Metal Gear Rising.”
  https://github.com/toninhoPinto/MeshSlicingRunTime

  Reply
• c# - Il taglio della maglia in tempo reale 18/01/2019 at 00:41

  […] usato il falso affettatrice 3.0 (http://unitycoder.com/blog/2011/08/09/fake-mesh-slicer-v3-0/) e inclusi nel campione hanno una capsula che […]

  Reply
• c# - El corte de la malla en tiempo real 02/06/2019 at 01:28

  […] utilizado el falso segmentación 3.0 (http://unitycoder.com/blog/2011/08/09/fake-mesh-slicer-v3-0/) e incluidas en la muestra, tienen una cápsula que la segmentación de las […]

  Reply
•
  mgear 14/06/2019 at 00:28

  source code and a simplified version of the demo from my master thesis in “Procedural Mesh Splitting”
  https://github.com/DanniSchou/MeshSplitting

  Reply
•
  mgear 15/02/2021 at 19:08

  runtime slicer
  https://github.com/toninhoPinto/MeshSlicingRunTime

  Reply
•
  mgear 27/02/2022 at 18:51

  mesh cutter
  https://github.com/hugoscurti/mesh-cutter

  Reply
